-OUR ACOUSTIC [PICK-UPS]- - -KINGDOM OF JOGA-

-as of [11 SEPTEMBER 2024]–

-FOR [LIVE PERFORMANCES], PLUGGING [ACOUSTIC PICK-UP] INTO [PA] IS BETTER THAN DIRECTLY PLUGGING THE [ACOUSTIC GUITAR] INTO [PA]-

*20 AUGUST 2022*

-the acoustic ‘direct input’ doesn’t work on my current ‘acoustic guitar’-

-so i ordered a ‘pickup’–

-FISHMAN NEO-D DARK BROWN SINGLE COIL SOUNDHOLE ACOUSTIC PICKUP-

-amazon link-

*[USER GUIDE] FILEPATH* —>

/Users/joga/Library/CloudStorage/GoogleDrive-josephjgatti@gmail.com/My Drive/[HANDBOOX]/-MUSIC PRODUCTION-/[GUITARS]/-GUITAR [PICK-UPS]-/-FISHMAN ACOUSTIC PICKUP-.pdf

-[USER GUIDE] LINK-

*MINIMUM [SOUNDHOLE DIAMETER]* —>

-[9.85 CM]-

-[10 FOOT] CABLE-

(3.048 METERS)

-[QUARTER-INCH] PHONE JACK-

([6.35 MM])

*SOUNDHOLE* —>

-JOGA2020-

-[10 CM] DIAMETER-

-SURROUNDED BY [1 CM] PERIMETER-

-WHICH FORMS AN “OUTER DIAMETER” OF [12 CM]-

-THE [UPPER HALF] OF THE [PERIMETER] IS [DARK]-

-THE [LOWER HALF] OF THE [PERIMETER] IS [LIGHT]-

.-SLIDE [30 CM] RULER UNDER YOUR STRINGS-

-ALIGN THE [RULER] SO THAT IT INTERSECTS AT BOTH POINTS WHERE THE “LIGHT/DARK PERIMETER” CHANGES “SHADE”-

-SUBTRACT [2 CM] FROM THE [DIAMETER] ACCORDING TO YOUR [RULER]-

(SO AS TO NOT INCLUDE THE “OUTER PERIMETER” WHEN MEASURING THE “SOUNDHOLE”)

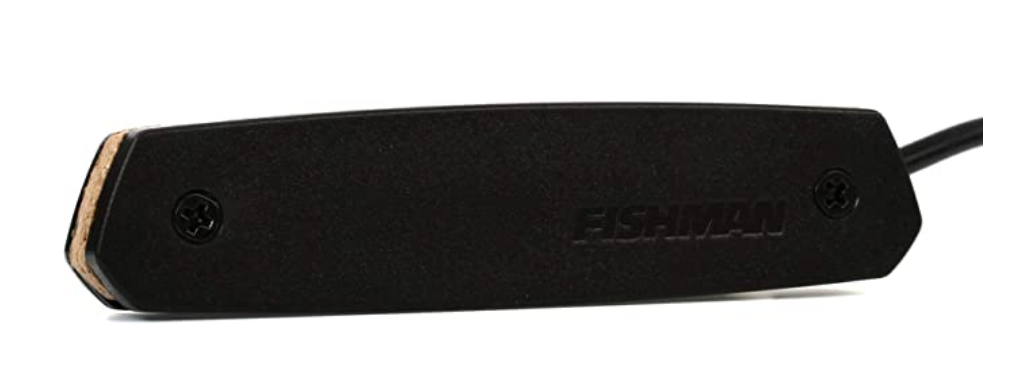

*FISHMAN PICKUP* —>

-[10.5 CM] X [2 CM]-

*USE THIS [(PHILLIP’S HEAD) SCREWDRIVER] TO ADJUST THE 2 [SCREWS] ON EACH SIDE OF THE [PICKUP FRONT]* —>

(PH0)

-TURN [LEFT] TO [LOOSEN]-

-TURN [RIGHT] TO [TIGHTEN]-

-SLIDE THE [PICKUP] INTO [SOUNDHOLE] FROM THE [RIGHT]-

-PUSH IT AS FAR UP THE [SOUNDHOLE] AS POSSIBLE-

-TIGHTEN THE SCREWS-

-POSITION YOUR GUITAR IN “PLAYING POSITION”-

-LOOP OTHER END OF “PICKUP CORD” THROUGH “BINDER CLIPS” ATTACHED TO [DESK LEGS] + INTO THE [QUARTER INCH PHONE PORT] OF YOUR [AUDIO INTERFACE]-

-PUSH THE “INSTRUMENT BUTTON”-

-TURN UP “VOLUME KNOBS” TO MONITOR YOUR SIGNAL-

This value-priced cousin of the Rare Earth pickup shares the same neodymium magnet structure for exceptional string balance and sparkling acoustic clarity.

The Neo-Ds low-profile, high impedance design needs no battery.

Natural acoustic sound thanks to cutting-edge Neodymium pickup technology

Low-profile, high-impedance passive pickup requires no battery

Installs quickly and securely with gentle cork lined clamps

Specially voiced for balanced response with bronze/phosphor bronze strings In

*SINGLE COIL* —>

$51.99

-6.4 OUNCES-

(LESS THAN 181.437 GRAMS)

-[BATTERY-POWERED]-

(BATTERY DOES NOT HAVE TO BE REPLACED)

-240 VOLTS-
